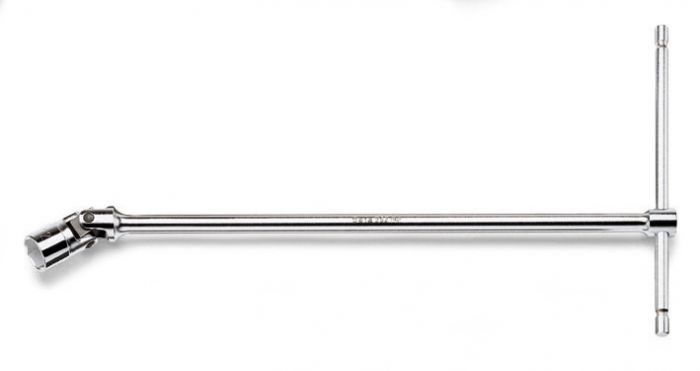

T kus s hlavicí BETA s kloubkem, Tklíč s kloubem, dlouhé TÉČKO s kloubem BETA na matice, modul do dílenského vozíku s téčky beta
T63
Model BETA 952 : 7-8-10-12-13-14-17-19mm
3,8 kg
(id:024240063)
6 813,-
Kč
-2%
6 704,-
Kč
cena bez DPH
5 540,50
Kč
dostupnost: skladem
|

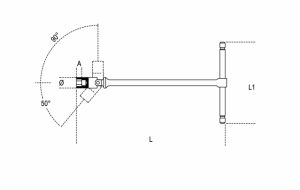

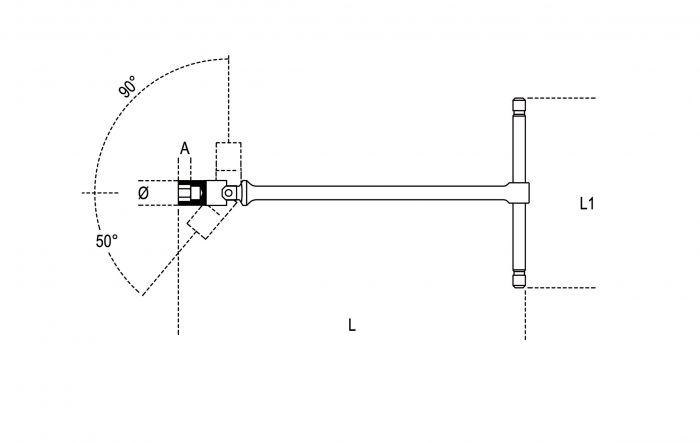

mm |
Ø mm |
A mm |
L mm |
L1 mm |
g | |
|---|---|---|---|---|---|---|
| 009520006 | 6 | 9,5 | 5,0 | 395 | 145 | 165 |
| 009520007 | 7 | 10,7 | 5,0 | 395 | 145 | 165 |
| 009520008 | 8 | 12,1 | 6,0 | 395 | 165 | 165 |
| 009520009 | 9 | 13,2 | 8,0 | 395 | 165 | 165 |
| 009520010 | 10 | 14,6 | 8,0 | 400 | 160 | 280 |
| 009520011 | 11 | 15,8 | 8,0 | 400 | 160 | 280 |
| 009520012 | 12 | 17,0 | 9,0 | 400 | 160 | 280 |
| 009520013 | 13 | 18,7 | 10,0 | 432 | 175 | 385 |
| 009520014 | 14 | 19,7 | 10,0 | 432 | 175 | 385 |
| 009520015 | 15 | 20,9 | 11,0 | 450 | 200 | 580 |
| 009520016 | 16 | 22,0 | 11,0 | 450 | 200 | 580 |
| 009520017 | 17 | 23,4 | 12,0 | 450 | 200 | 580 |
| 009520018 | 18 | 24,7 | 12,0 | 450 | 200 | 590 |
| 009520019 | 19 | 26,0 | 13,0 | 500 | 230 | 890 |
| 009520020 | 20 | 27,4 | 13,0 | 500 | 230 | 900 |
| 009520021 | 21 | 28,5 | 14,0 | 500 | 230 | 920 |
| 009520022 | 22 | 29,7 | 14,0 | 500 | 230 | 930 |
| 009520024 | 24 | 32,4 | 16,0 | 500 | 230 | 950 |
